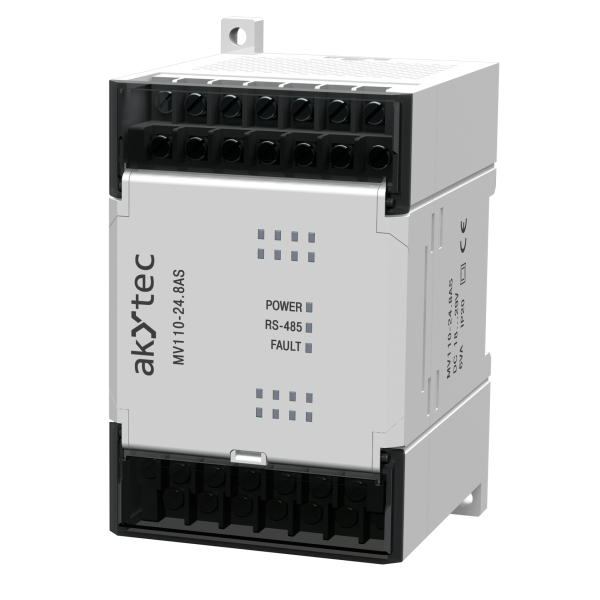

The MV110 AI Series by akYtec offers a comprehensive lineup of analog input modules specifically designed for decentralized automation systems. These modules are adept at facilitating reliable communication through the Modbus RTU/ASCII protocol and RS485 interface, making them a prime selection for both enhancing existing systems and implementing new projects. Renowned for its economical and versatile solutions, the MV110 series caters to a broad range of industrial applications.
Key Technical Features:
Multiple Analog Inputs: The modules are equipped with numerous analog inputs, assuring seamless integration with various types of sensors and signal forms.
Digital Input Capability: Analog inputs possess the flexibility to be reconfigured as digital inputs, broadening the modules’ utility across diverse operational contexts.
Enhanced Signal Resolution: These modules offer high-resolution signal processing, vital for applications that demand precise analog data interpretation.
Isolation for Integrity: With galvanic isolation, the analog inputs are safeguarded against electrical noise, ensuring accurate and undisturbed measurements.
Mounting Flexibility: The modules are designed for both DIN rail and wall mounting, affording adaptability in placement according to project specifications.
Durability in Diverse Environments: Enclosed within an IP20-rated casing, the modules function steadfastly in extreme temperatures from -20 to +55 °C, proving their robustness across various environmental settings.
Consistent and Reliable Data Transfer: Requiring a 24V DC power source, the MV110 series modules maintain stable Modbus RTU/ASCII communication over RS485, assuring consistent data transfer in automation networks.
Business Benefits:
Cost-Effective Solutions: The MV110 series is intentionally designed to be budget-friendly, reducing the necessity for extra components and thereby offering significant savings.
Cross-Industry Versatility: These modules are utilized across diverse fields such as building automation and process control, showcasing their capability to fulfill distinct industry demands.
ORDERING CODES
MV110
Power Supply
24 (20…28) V DC
Power Consumption, Max.
6 W
Analog Inputs
8
Input Signals
RTD, TC, Position encoders, Standard signals, Standard signal 0-10 V, 0-5 mA, 0(4)-20 mA
akYtec MV110 MODBUS Analog Input modules
The MV110 AI Series by akYtec offers a comprehensive lineup of analog input modules specifically designed for decentralized automation systems.
Description
The MV110 AI Series by akYtec offers a comprehensive lineup of analog input modules specifically designed for decentralized automation systems. These modules are adept at facilitating reliable communication through the Modbus RTU/ASCII protocol and RS485 interface, making them a prime selection for both enhancing existing systems and implementing new projects. Renowned for its economical and versatile solutions, the MV110 series caters to a broad range of industrial applications.
Key Technical Features:
Business Benefits:
24 (20…28) V DC
6 W
8
RTD, TC, Position encoders, Standard signals, Standard signal 0-10 V, 0-5 mA, 0(4)-20 mA
Yes, 8x, No
RTD: ±0.25%, TC: ±0.5%, Encoders: ±0.25%, Signals: ±0.25%, ± 0.25%
RTD: 0.9 s, TC/Encoders/Signals: 0.6 s, 5±2 ms
1500 V, Between groups: 750 V, From power supply: 3000 V
16 bit, 10 bit
RS485
Modbus RTU / ASCII
2.4…115.2 kBit/s
-20…+55 °C
-25…+55 °C
Up to 80%, non-condensing
IP20
63 x 110 x 75 mm
Approx. 240 g
Plastic
Questions & Answers
Robot verification failed, please try again.
This Product have no Question..!
MV110-8A User Guide
DownloadMV110-8AS User Guide
DownloadRelated Products

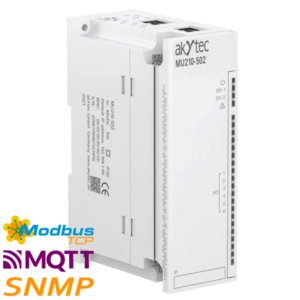

akyTec MU210 Modbus TCP Analog Output Module

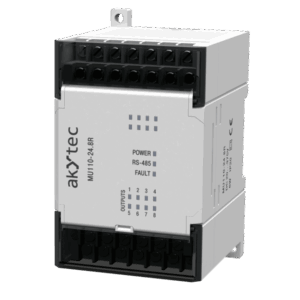

Get A QuoteakYtec MU110 Digital Output (Relay) Module

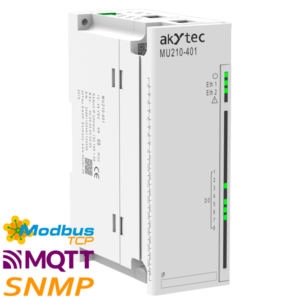

Get A QuoteakYtec MU210 Digital Output Modules
