The MEAN WELL MDR-100 series DIN rail power supplies have a slimline design that leaves more room on the DIN rail for other equipment.
The full range universal AC input makes them ideal for OEMs producing equipment for international markets.
These power supplies are ideal for products being designed with low stand by power consumption, as the no load power consumption of these power supplies is less than 1 Watt.
The MDR-100 series features a DC OK output signal for remote status monitoring.

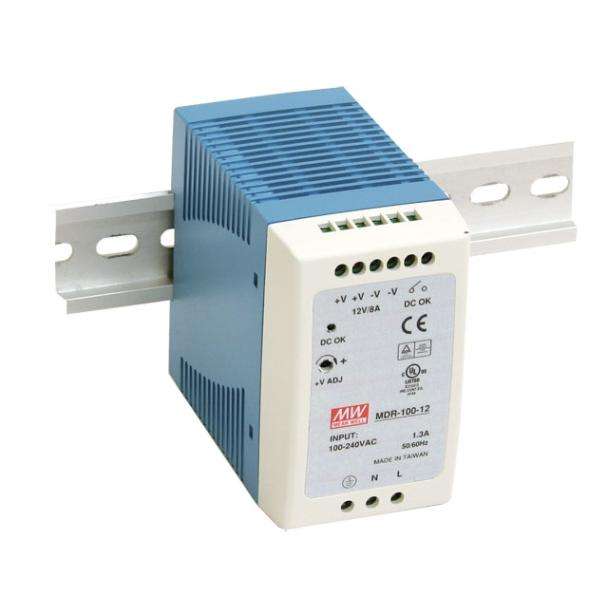

MDR-100 Series
100-Watt Slimline DIN Rail Power Supply
Description
The MEAN WELL MDR-100 series DIN rail power supplies have a slimline design that leaves more room on the DIN rail for other equipment.
The full range universal AC input makes them ideal for OEMs producing equipment for international markets.
These power supplies are ideal for products being designed with low stand by power consumption, as the no load power consumption of these power supplies is less than 1 Watt.
The MDR-100 series features a DC OK output signal for remote status monitoring.
MDR-100-12, MDR-100-24
12V, 24V
7.5A, 4A
100W
85 ~ 264VAC 120 ~ 370VDC
-10 ~ +60 (Refer to "Derating Curve")
Questions & Answers
Robot verification failed, please try again.
This Product have no Question..!
Datasheet
DownloadRelated Products
MDR-60 Series

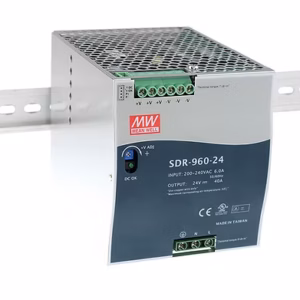

Get Quote This product has multiple variants. The options may be chosen on the product pageSDR-960 Series
