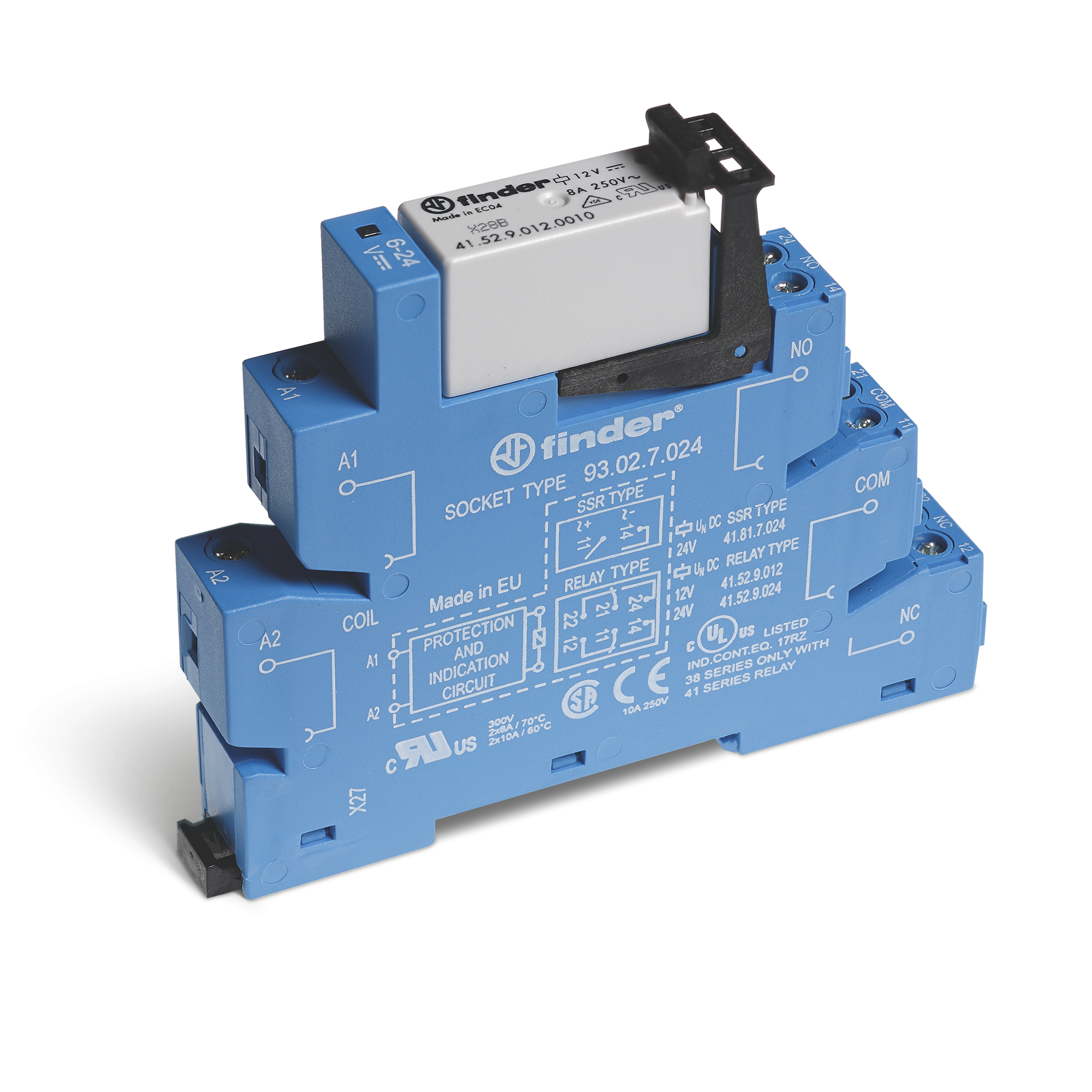

Finder Type 38.52 RELAY MODULE, 2CO 6A@250VAC

Description

Relay interface modules, Electromechanical relay, with screw terminal, 2 pole, CO (nPDT), 8 A, AgNi, DC sensitive coil, 12 V, operating from 9.6 to 14.4 V, rated power 0.5 W, consumption 41 mA, holding voltage 7.2 V, must drop-out voltage 0.6 V, option: DC, ambient temperature from -40 to +70 °C

Available variations:
– Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.
– Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.
– Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.
– Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.
– Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.

Available models:

• 38.52-012-DC: RELAY MODULE, 2CO 6A@250VAC, 12VDC
• 38.52-024-AC: RELAY MODULE, 2CO 6A@250VAC, 24AC/DC
• 38.52-024-DC: RELAY MODULE, 2CO 6A@250VAC, 24VDC
• 38.52-110-AC: RELAY MODULE, 2CO 6A@250VAC, 110VAC/DC
• 38.52-240-AC: RELAY MODULE, 2CO 6A@250VAC, 240VAC
