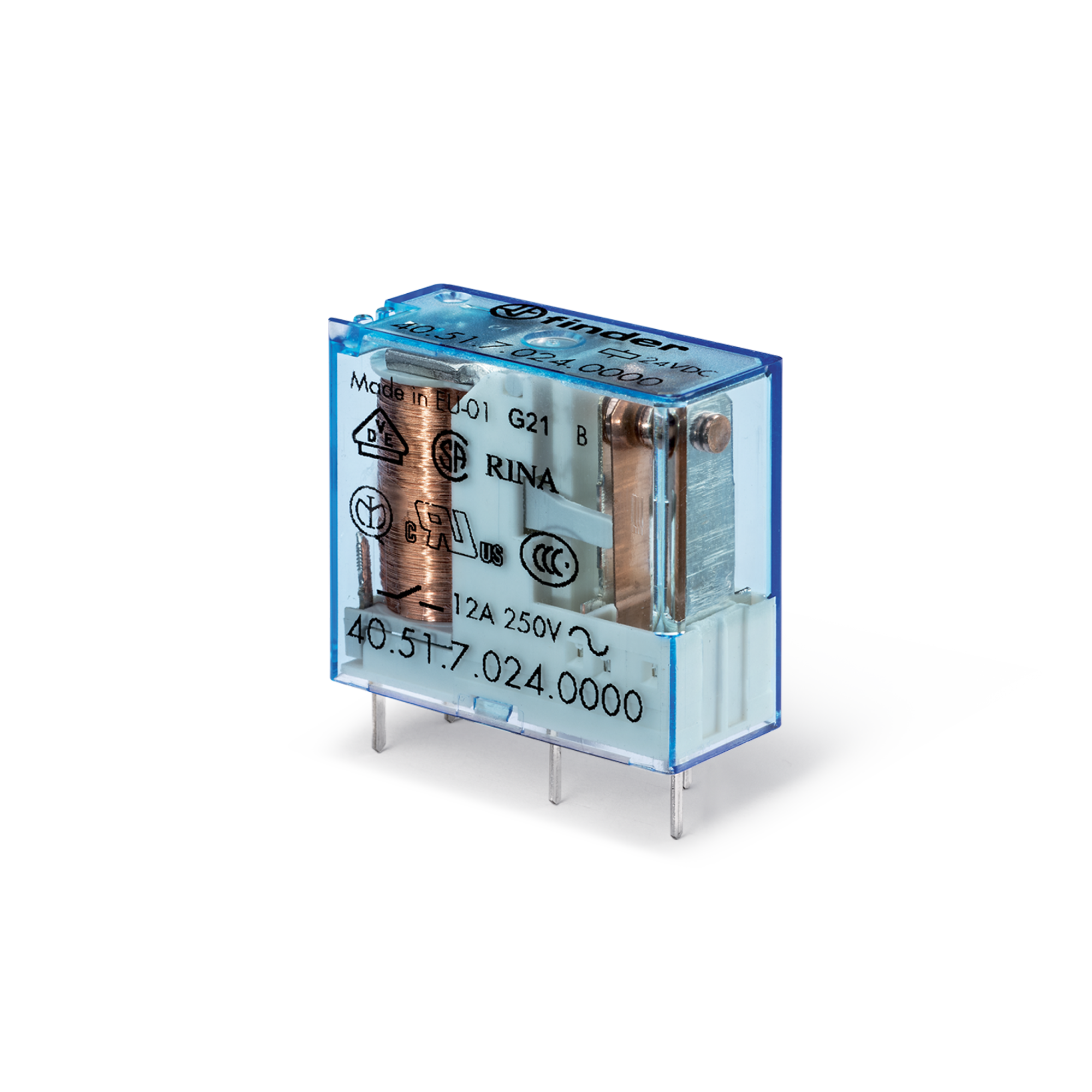

Finder Type 40.51 RELAY 1CO 10A@250VAC

Description

Miniature PCB Relays, PCB/Plug-in – 5 mm pinning, 1 pole, CO (nPDT), 12 A, AgNi, DC coil, 110 V, operating from 80.3 to 165 V, rated power 0.65 W, resistance 18000 Ω, consumption 6.2 mA, holding voltage 44 V, must drop-out voltage 11 V, option: Pin length 5.2 mm (Plug-in relays), version: Flux proof (RT II), ambient temperature from -40 to +85 °C

Available variations:
– Miniature PCB relay, 1 CO 12 A. PCB mount (5.0 mm pin pitch) or plug-in with 95 Series sockets, DC coils (650 mW or 500 mW) and AC coils. Variant with Cadmium-free contacts. 8 mm, 6 kV (1.2/50 µs) insulation between coil and contacts. Complies with the glow wire test according to EN 60335-1.
– Miniature PCB relay, 1 CO 12 A. PCB mount (5.0 mm pin pitch) or plug-in with 95 Series sockets, DC coils (650 mW or 500 mW) and AC coils. Variant with Cadmium-free contacts. 8 mm, 6 kV (1.2/50 µs) insulation between coil and contacts. Complies with the glow wire test according to EN 60335-1.

Available models:

• 40.51-009-DC: RELAY 1CO 10A@250VAC, 9VDC COIL
• 40.51-024-AC: RELAY 1CO 10A@250VAC, 24VAC COIL
• 40.51-024-DC: RELAY 1CO 10A@250VAC, 24VDC COIL
• 40.51-110-DC: RELAY 1CO 10A@250VAC,110VAC COIL
